Description

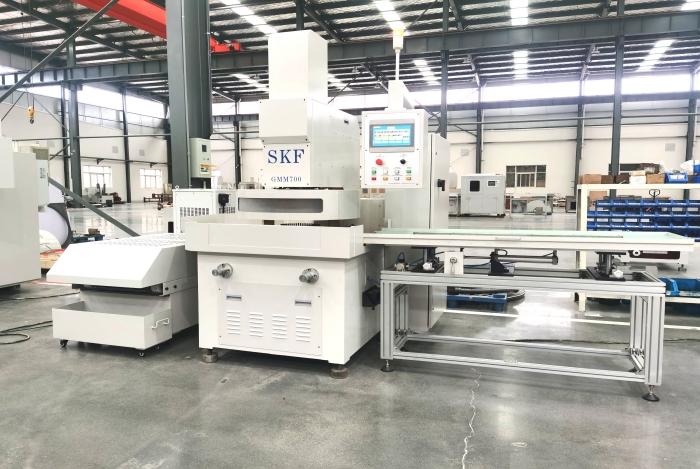

Double disc surface fine Grinding machine GMM700- Carbide blade/ insert

• Over view:

Double disc surface Fine Grinding machine GMM700 is a super finishing process performed by removing material from two surfaces of the carbide blades/ inserts in extremely precise geometric accuracy and surface finish. Typically, it is the last grinding step of a mechanical production chain utilized to improve and/or correct the geometry of carbide blades/ inserts coming from sintering, sawing, molding or similar operations. Depending on the application, the stock removal also can be taken from just one surface.

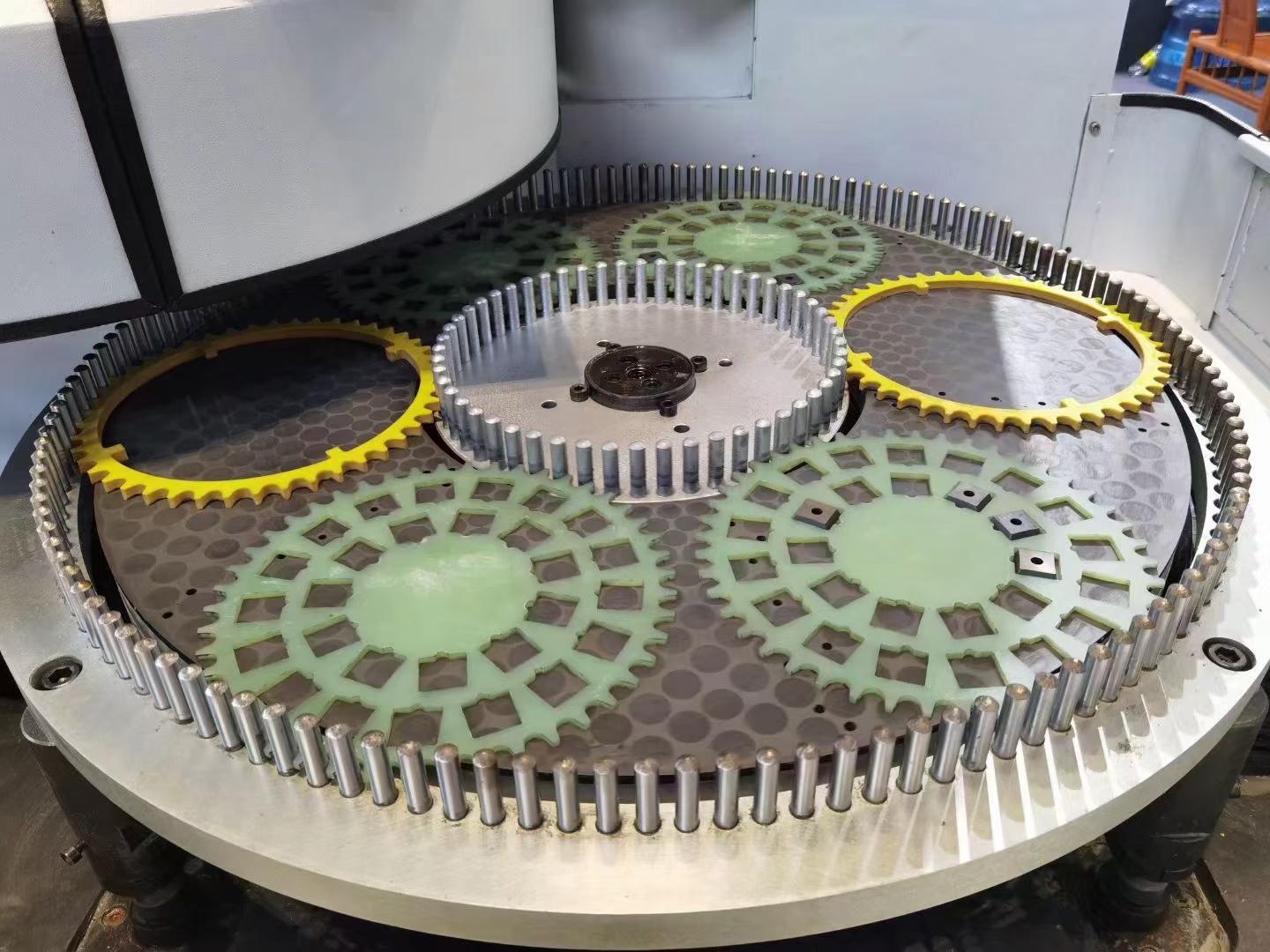

When the machine is working, upper and lower grinding discs as well as the inner ring rotate simultaneously to drive carbide blades/ inserts to do reciprocating planet motion between the two grinding discs. Diamond grinding plates can be adopted for carbide blades/ inserts, so as to achieve double side precision grinding. Our GMM700 take advanced probe side measurement and Sony size measuring controller to realize real-time online measurement control on processed  carbide blades/ inserts.

• Features:

1. High strength cast iron machine body
2. Three independent adjustable driving motors are applied to upper disc, lower disc and inner ring
3. Upper working disc can be manually or automatically swing out
4. Pneumatic control
5. Digital size control system
6. Inner ring rotates under servo driving
7. Semi-automatically loading and unloading device can be configured
8. Constant temperature cooling and filtering system
9. Touch screen control interface
10. Compressed protection for upper working disc
11. Strong fault diagnosisfunction
12. Aplurality of functions for selection
13. No or less maintenance, simple and convenient operation
14. Customized processing solution, to improve product capacity

• Technical Parameters:
