[caption id="attachment_312" align="alignnone" width="700"]

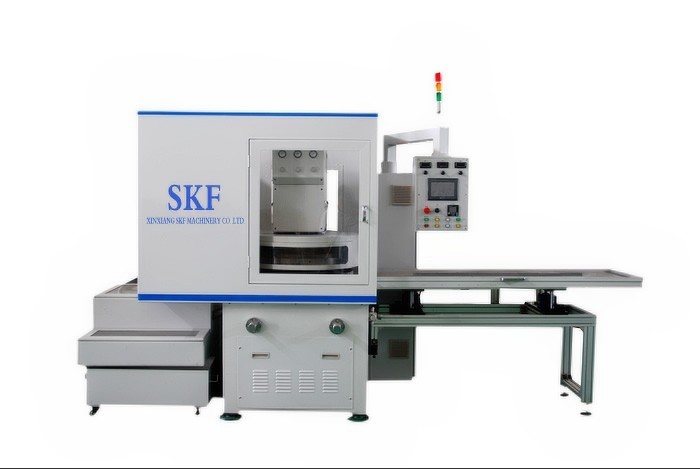

high precision double side surface grinding machine[/caption] [caption id="attachment_313" align="alignnone" width="700"]

high precision double side surface grinding machine[/caption]

End surface grinding machine

Typical client we have served:

AVIC: The top one in Chinese motor engine

MIBA: The words famous one in powder metallurgy

SEDAL: The words famous one in high precision ceramic

GKN: The words famous one in powder metallurgy

ANADOLU: The Turkish research center in ceramic material

Etc

Description

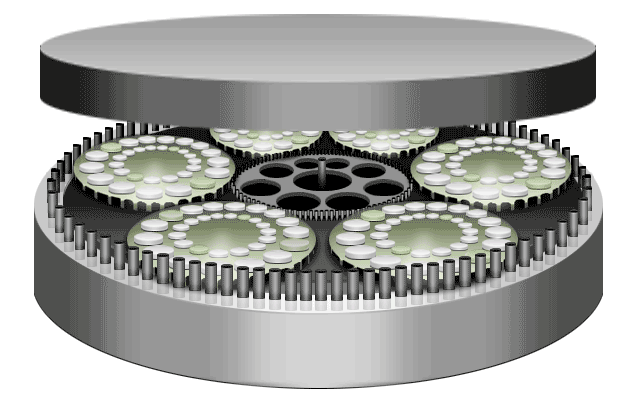

Double side surface grinding machine Grinding principle:

Features:

High strength cast iron machine body
Three independent adjustable driving motors are applied to upper disc, lower disc and inner ring
Upper working disc can be manually or automatically swing out
Pneumatic control
Digital size control system
Inner ring rotates under servo driving
Semi-automatically loading and unloading device can be configured
Constant temperature cooling and filtering system
Touch screen control interface
Compressed protection for upper working disc
Strong fault diagnosisfunction
Aplurality of functions for selection
No or less maintenance, simple and convenient operation
Customized processing solution, to improve product capacity

Application fields:

Range from normal metal material to complex steel;

Hydraulic elements:	Blade pump,steering valve, plunger pump, gasoline pump,hydraulic motor, etc.
Compressor parts:	Air condition compressor blade, piston, cylinder, refrigerator compressor valve plate, etc.
Engine parts	Internal combustor part, booster pump part, oil nozzle/ oil pump part, etc Various hard alloy blades, high precision bearing, sealing piece, watch part, ceramic valve core, magnetic material, etc
Any other hard and brittle materials which required a high precision surface quality

Typical carbide blade parts after grinding:

Q: Can you make a test grinding for our inspection ?

A: Yes, we can supply free test grinding for you. Any special cases please contact usgrace@skfjx.com

Q: Will you supply the installation and training for overseas ?

A: Yes, we will arrange 1-2 engineers for machine oversea installation and customer training. These years, our oversea market keep expanding, we aim to supply all our customer timely and reliable service.
