Description

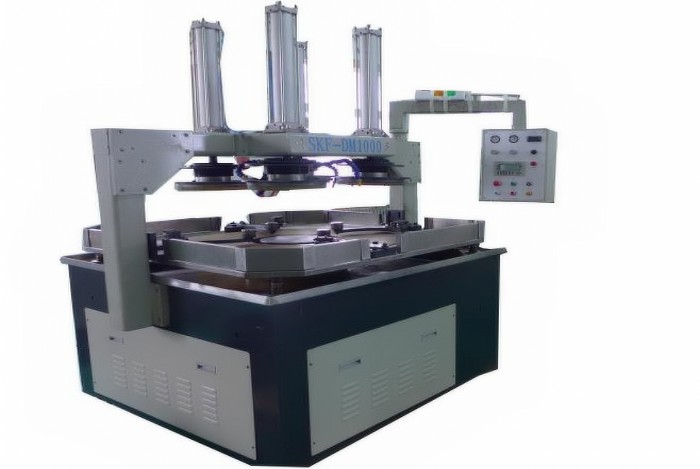

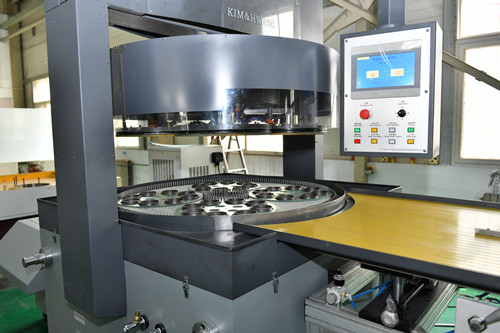

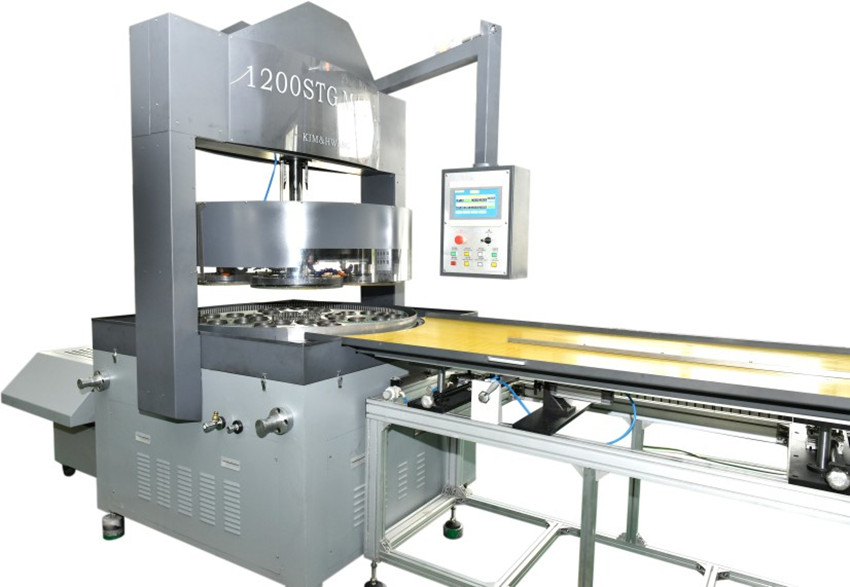

Single side Lapping & Polishing machine- DM1200

• Overview:

SKFJX Single side lapping and polishing machines are versatile precision machines designed to produce lapping / polishing flat surfaces in high degree of flatness of and surface finish with absolute uniformity on all types of hard and soft materials.Best to suit high degree of Flatness & Surface Finish.

SKFJX Single side lapping and polishing machines are used for small to large size work pieces. Production of these parts can be achieved from small quantities to high volume production. All machines are equipped with digital control and monitoring electronics.

• Working principle:

The working rings or carriers locate in plate and also rotate freely

The parts kept freely inside conditioning rings or carriers with the surface to be lapped mating the Lapping Plate.

The sharp abrasive particles which are continuously fed on the machine plate get impregnated in the Lapping plate and cut the material from the parts surface and creates replica of the plates flatness on to the same.

• Application:

• Technical parameter:

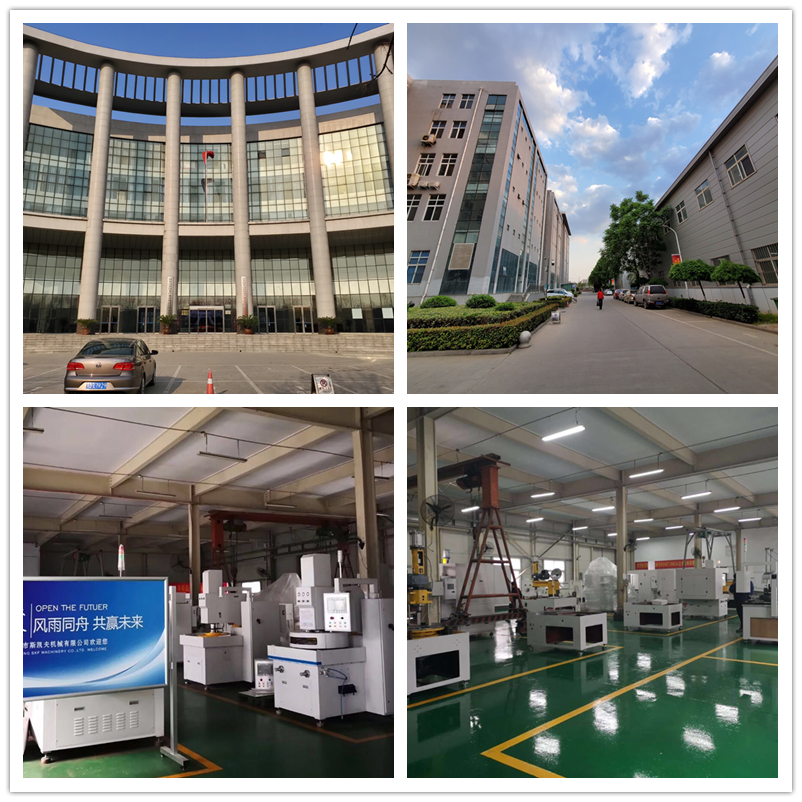

• Factory view:

• Export oversea:
